Advance with the digital power of your popular favorite–MSD 6AL ignitions. With less power draw and higher output, MSD moves you with “the fire to drive” in a digital powerhouse! Inside microprocessors, updated circuits and efficient components monitor and handle every firing and rev limit to produce more power while pulling less current.

Due to improved output, more than 135mJ of spark energy for every firing with 530+ volts to the coil!

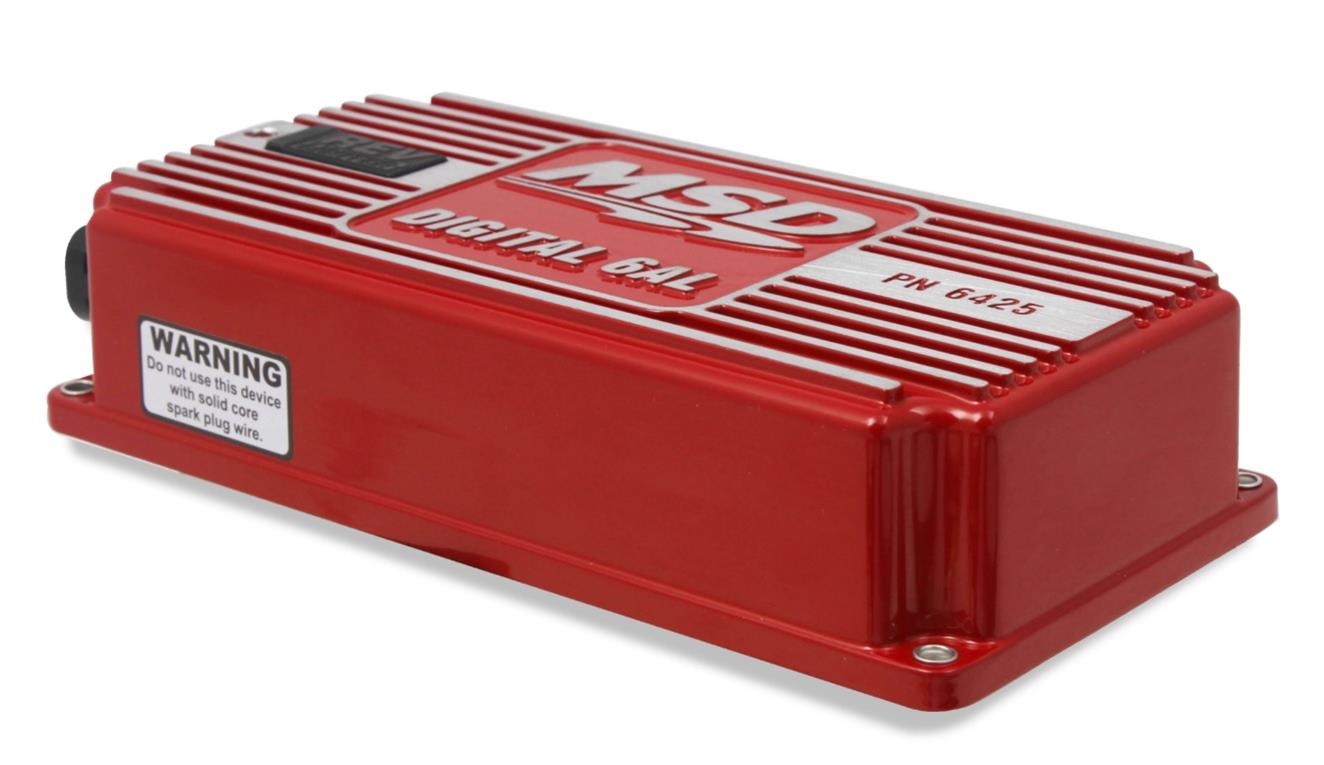

These digital 6AL ignition controllers are sleek with a lower profile. Wiring is routed out one end through a sealed and locked connector and two rotary dials to set rpm limit are positioned right on top–easier installation, super easy access and a clean, neat appearance under the hood.

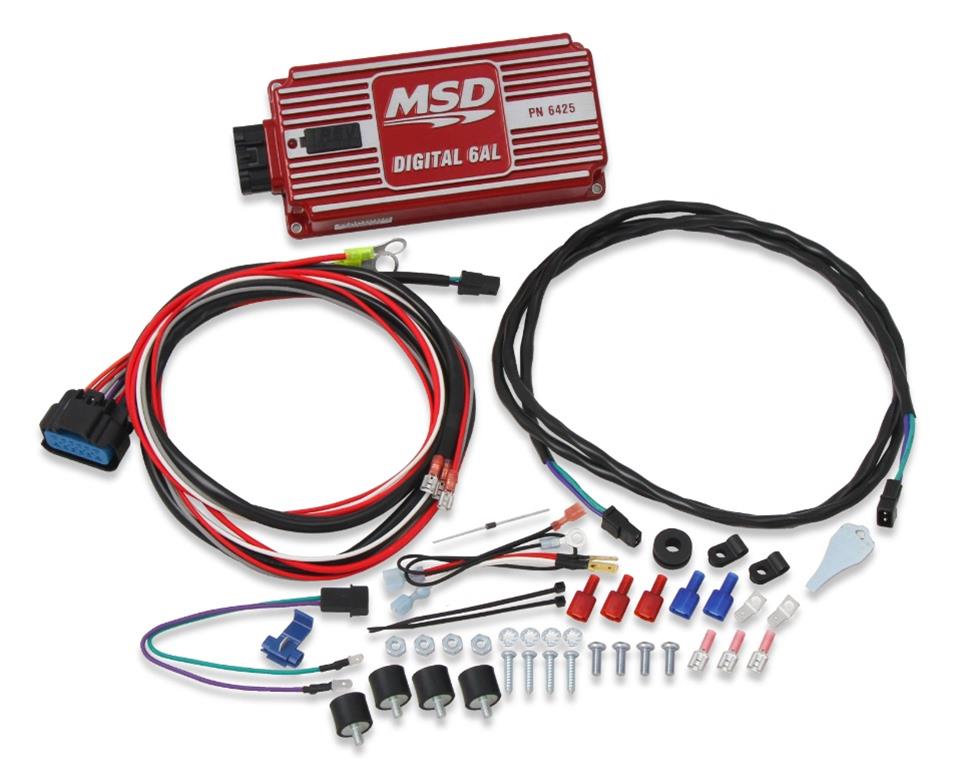

Controllers are supplied with wiring harness and components you need for install plus, vibration mounts. Increased output and proven multiple-spark power–MSD digital 6AL ignition controllers are a definite win-win!

Features:

• Compatible on 4, 6, or 8-cylinder engines with 12-volt negative ground electrical systems
• Low-profile housing
• Delivers 530 volts to the coil with up to 135mJ of spark energy per firing
• Efficient internals draw less current to produce more power
• Set rev limit in 100 RPM increments with two rotary dials
• All wires exit on the same side via a sealed/locked connector
• Accepts trigger inputs from breaker points, amplifiers, and magnetic pickups
• Includes wiring harness, necessary installation components, and vibration mounts
• Built-in LED for system checks

Specifications:

• Spark Energy: 135 to 145 mJ
• Primary Voltage: 520 to 540
• Secondary Voltage: 45,000
• Spark Series Duration: 20 degrees Crankshaft Rotation
• RPM Range: 15,000 with 14.4 volts
• Required Voltage: 12 to 15 (7-volt start)
• Current Draw: 0.7 amp per 1,000 RPM
• Size: 8 in. L x 4 in. W x 1.825 in. H
• Weight: 1.7 pounds

Watch a video here.

MUST USE BLASTER 2 COIL WITH THIS PRODUCT
